Introduction: In this blog we are going to explain how to create a bar chart which represents the Source wise Cost of Travel with a filter based on Journey_type (single select). Please make sure you have gone through the blog “Introduction to Community Reporting Interface”

Steps:

  1. Data Source
  2. Dashboard Layout
  3. Parameter
  4. Report

1. Data source :

Create data source connection.

Here we are using connection type : plain jdbc

Data Source

In the configuration of data source, provide the details as shown below.

<driver>com.mysql.jdbc.Driver</driver>   // sql driver
<url>jdbc:mysql://192.168.2.51:3306/Travel_Data</url>  // jdbc url
<user>hiuser</user>  // database username
<pass>hiuser</pass>  // database password

Note : You can choose other kind of data sources. The rest of the steps are the same as others.

2. Dashboard Layout :

In the dashboard layout we basically specify the layout of the report, dashboards, input parameters which we are creating. All the divs are specified here within which they get rendered.

Here we are creating 2 divs : client_name, client_wise

Input Parameters div is : client_name

Report div is : client_wise

When you click on dashboard layout a layout similar to below will appear: (see the screenshot)

Dashboard Layout

HTML :

<div class = "col-sm-4 col-md-4 col-xs-4" id="client_name">Travel Type</div>
<div id="client_wise"></div>

CSS:

In CSS place holder we can add the CSS related to bar chart customization as well as report customization like back-ground color , report border , border radius, color etc.

3. Parameters :

Parameter are used to filter the report data. These parameters can be single select, multiple select, date range, slider, date picker etc. We can create multiple parameters for the single report/dashboard.

When you click on add button, the parameter is created with default name parameter1.

Parameters

Click on “Pencil” icon and we will rename this as “Journey_Type”. We should place the code for Parameter configuration, parameter query in their respective place holders.

Click on apply button to save all the configurations.

In this sample we are creating single select input parameter.

See the below screenshot, we are creating one parameter.

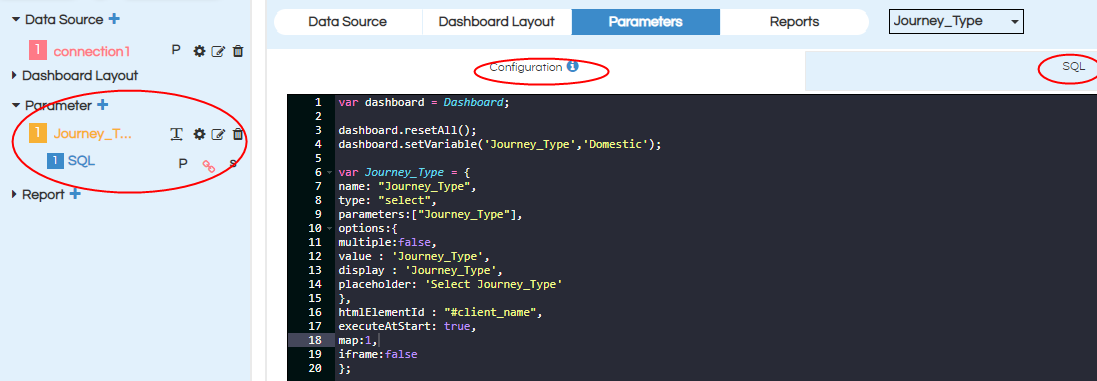

Single Parameter

A. Journey_Type : (single select)

Choose connection as “connection1”(previously created in data sources)

Here “Journey_Type” is a Single-select input control, so we need to choose input type as “String” as shown in below image. By default it is always “String”.

Single Select Journey_Type

Note: For all multi select parameters we should select “Collection” irrespective of parameter datatype. If it is single select parameter we choose the type based on datatype of parameters

Configuration :

var dashboard = Dashboard;
dashboard.resetAll();
dashboard.setVariable('Journey_Type','Domestic');
var Journey_Type = {
name: "Journey_Type",
type: "select",
parameters:["Journey_Type"],
options:{
multiple:false,
value : 'Journey_Type',
display : 'Journey_Type',
placeholder: 'Select Journey_Type'
},
htmlElementId : "#client_name",
executeAtStart: true,
map:1,
iframe:false
};

SQL (this will have the SQLQuery for the input parameter):

select distinct Journey_Type as Journey_Type FROM `Travel_Data`.`Traval`

Note: If you do not have any parameters please make sure that you will have to add below code in the “Report”configuration as shown in below.

var dashboard = Dashboard
dashboard.resetAll();

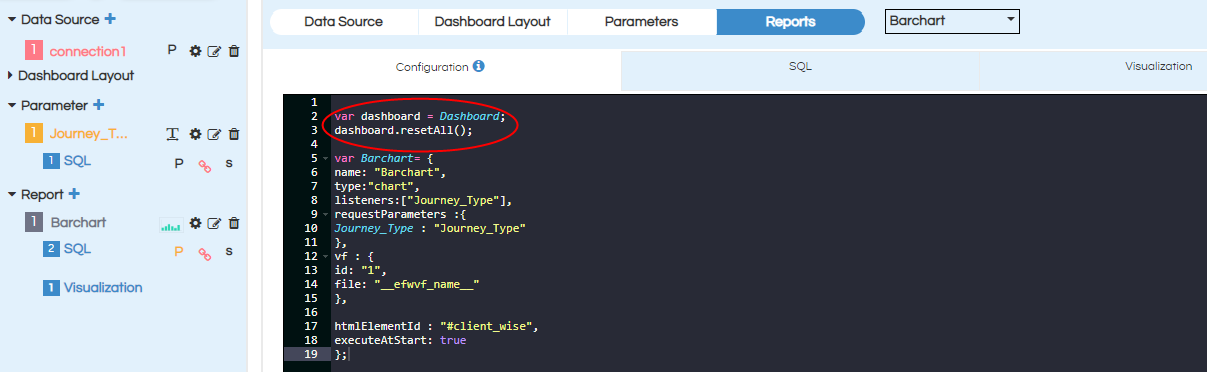

Report configuration

In case if you delete first parameter then also you need to provide above code in “Report” configuration.

Note: The configuration script is added only for the first parameter. For all the remaining parameters, this script should be copied and repeated with the necessary changes.

4. Report :

We can configure different visualizations to render in different divs in the dashboard layout. Divs were already defined in the “Dashboard Layout”

When click on add report button (see the screenshot), in the left panel we find report, SQL, Visualization related options.

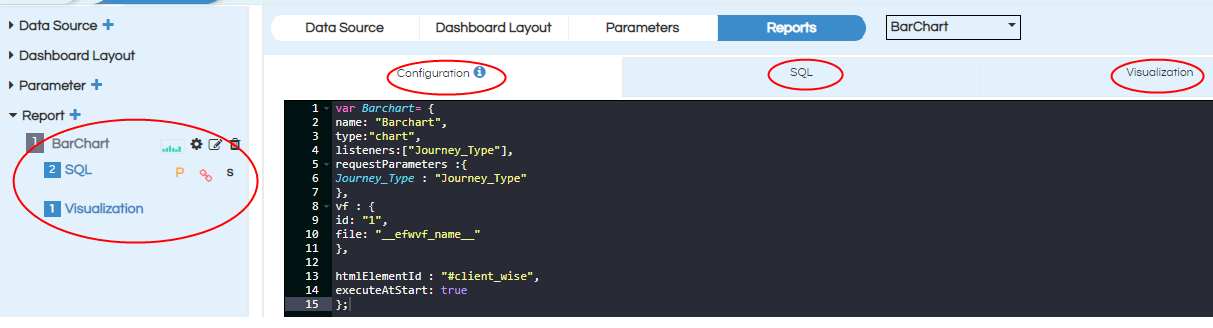

Report

Click on configure, on the right side we can see the place holders for report configuration, SQL, Visualization. Place the respective code apply click on apply.

Here we need to choose chart type as “Bar” chart, connection as “connection1” and parameter (Journey_Type).

Report Configuration :

var Barchart= {
name: "Barchart",
type:"chart",
listeners:["Journey_Type"],
requestParameters :{
Journey_Type : "Journey_Type"
},
vf : {
id: "1",
file: "__efwvf_name__"
},

htmlElementId : "#client_wise",
executeAtStart: true
};

SQL :

	select
		`Travel_Data`.`Traval`.`source` as `source`,
		sum(cost) as cost
		from
		`Travel_Data`.`Traval`
		where Journey_Type = ${Journey_Type}
		group by
		`source` limit 10

Visualization:

<Dimensions>source</Dimensions>
<Measures>cost</Measures>

Note: After placing the configuration, SQL, Visualization then click on apply or (control+s)

After completing all the steps save the CE report :

In the back end server location the following files will be generated

  1. Efw (report view in the front end)
  2. Efwce (editable file in the front end)
  3. Efwvf
  4. Html
  5. Efwd

In the front end file browser we can see EFW and EFWCE files.

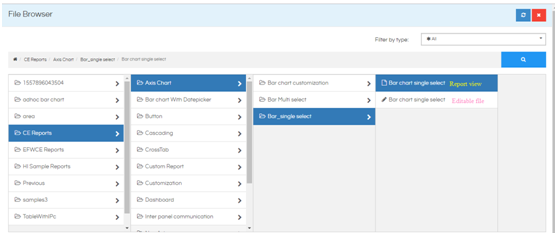

Front End Browser

When we double click on the report view file (with the extension efw) report opens like below. The other file with the extension EFWCE can be used to edit the created report/dashboard again.

Bar chart with single select parameter Report View :

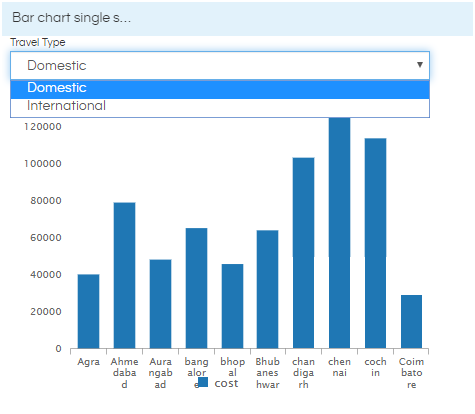

Output Barchart

For more details on EFWCE reporting refer the documentation :

EFWCE method of reporting in Helical Insight

For further assistance, kindly contact us on support@helicalinsight.com or post your queries at Helical Insight Forum
